FTI Finish Thompson Inc.

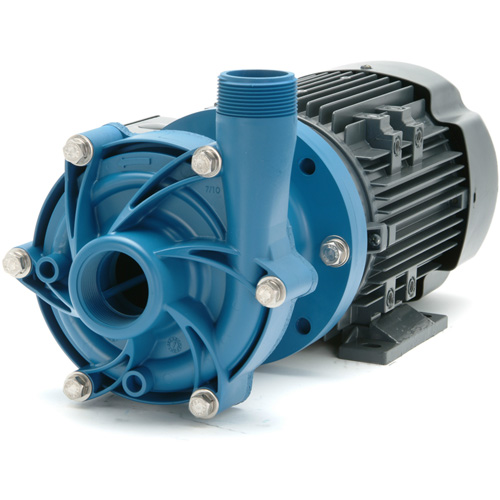

Magnetic Drive Pump with PTFE Bushing

Model: PUN297

Mfr. No.: DB6V-T-M226

  • Magnetic Drive Pump with PTFE Bushing Brunswick Fyr & Safety

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Manufacturer's Warranty

  • 5 Years

Intake Size

1"

Discharge Port Size

1"

Motor

1/2 HP

Suction Head

33'

Connection Type

NPT

Impeller Size

3"

Magnet Type

6-Pole

Material

PVDF

Max. Flow

40 GPM

Power

115-208-230 V, 60 Hz

Full Load Amp

3.8 FLA

Motor Frame Size

56C

Country Of Origin

United States

  • High operating efficiency
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded NPT connections
  • Horizontal or vertical installation
  • Back pullout design
  • Mounts to IEC 56, 63, 71 B14 motor frames
  • Easy set, measurement free drive
  • CE certified
  • Working pressure to 60 psi (4.1 bar)
  • Specific gravity up to 1.8
  • Viscosity up to 50 cP
