Gray Tools

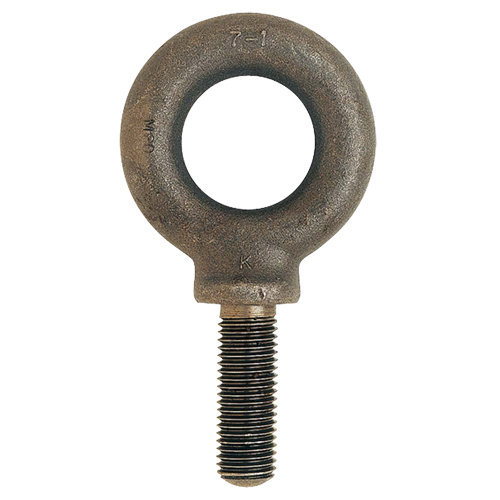

Eye Bolt, 54 mm Dia., 38 mm L, Uncoated Natural Finish, 2266 lbs. (1.133 tons) Capacity

Model: LU701

Mfr. No.: BS12M

  • Eye Bolt, 54 mm Dia., 38 mm L, Uncoated Natural Finish, 2266 lbs. (1.133 tons) Capacity Brunswick Fyr & Safety

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Working Load Limit

2266 lbs. (1.133 tons)

Finish

Uncoated Natural Finish

Eye Diameter

54 mm

Shank Length

38 mm

Body Style

With Shoulder

Shank Threading

Fully Threaded

I.D. Eye

30"

O.D. Eye

54 mm

Thread Size Mm, UNC-2A

M12 x 1-3/4"

Overall Dimensions

4" L x 2" W x 1" H

Weight

0.36 lbs.

  • Never apply loads greater than rated capacity
  • Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
  • Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
