Lincoln Electric

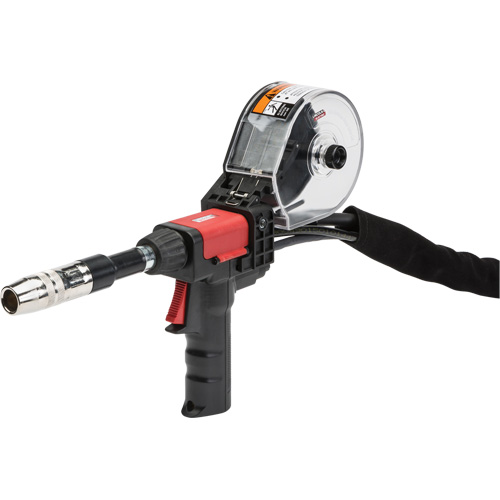

Magnum® Pro 250LX Spool Gun, Lincoln, 280 Amperage Rating

Model: TTV490

Mfr. Model No.: K3570-2

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

  • Type: Lincoln
  • Feeder Plug: Lincoln Power MIG
  • Amperage Rating: 280
  • Duty Cycle at Rated Amperage: 60%
  • Cable Length: 25'
  • Wire Diameter: 0.03 - 3/64" (0.8 - 1.2 mm) Aluminum/0.025 - 0.035" (0.6 - 0.9 mm) Steel
  • Weight: 13.5 lbs. (6.12 kg)
  • Utilizes premium Magnum Pro expendables for extended contact tip life, increasing the amount of arc-on time
  • Plugs directly into the Power MIG 256 and Power MIG 260 without the need for an additional adapter
  • Adjust wire speed remotely at the gun with fine resolution so there is no need to travel back to the power source
  • Large thumbscrew makes fine adjustment of drive roll pressure effortless
  • Set screw allows for coarser adjustment if needed for steel
  • Includes: Thread-on aluminum 550A diffuser, 5/8" aluminum recessed gas nozzle assembly, 3/64" aluminum tapered contact tip, .030/.035 - 3/64" aluminum drive roll, 180° barrel liner, 550A insulator
