NORCO Lifting

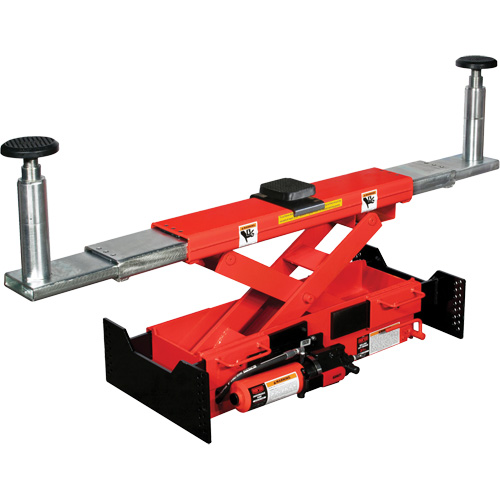

Air/Hydraulic Pump Operated Rolling Lift Bridge

Model: FLV879

Mfr. No.: 79324G

  • Air/Hydraulic Pump Operated Rolling Lift Bridge Brunswick Fyr & Safety

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Includes

  • (2) 3-1/2” Adapters
  • (2) 5” Adapters
  • (2) Padded Saddles with Extension Screws

Capacity

3 Ton(s)

Lifting Range

32 - 46.5"

Overall Height

34-11/16"

Overall Width

21-1/2"

Overall Length

39-7/8"

Stroke Length

9"

Max. Lift Height

18-3/8"

Country Of Origin

China

  • Used in quick lube pit applications or in conjunction with above ground lifts
  • The bridge straddles the lift rails and raises the vehicle’s tires off the rails for wheel alignment, brake, tire and suspension work
  • Push button air/hydraulic pump provides safe, quick lifting up to 9” which allows for a maximum lift height of 18-3/8" when using both adapters and extension screw extended
  • The lifting pads safely support the vehicle on the bridge and the adjustable lift arms span up to 63”
  • Universal mounting brackets adjust to a lift rail range of 32" to 46-1/2”
  • Flat-end and hook-end adapter brackets are equipped with spring-loaded roller bearings for smooth maneuverability of bridge on lift rails (brackets sold separately)
  • Mechanical stop prevents accidental lowering of bridge
  • Lowering is accomplished with one hand on the release lever and the other hand releasing the mechanical stop
  • Equipped with rubber faced saddle for differential lifting
