Reed Instruments

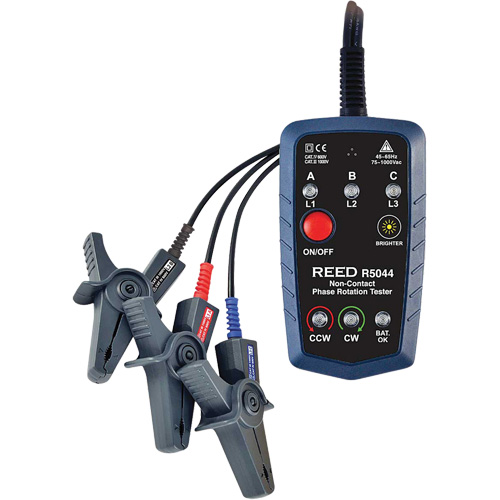

Non-Contact Phase Rotation Tester with ISO Certificate

Model: IC559

Mfr. No.: R5044-NIST

  • Non-Contact Phase Rotation Tester with ISO Certificate Brunswick Fyr & Safety

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Display Type

Digital

No. Of Phases

3

Voltage Detection Method

Static Induction

Voltage Range

75 - 1000 VAC

Frequency

45 - 65 Hz

Indicators

Audible (Buzzer) / Visual (LED)

Power Supply

9V Battery

Overvoltage Category

CAT. III 1000V, CAT. IV 600V

Cable Length

31.5" (800 mm)

Alligator Clip Jaw Opening

1.18" (30 mm)

  • Non-contact voltage sensing alligator clips promote safety
  • Colour-coded leads (red, black, blue) meet IEC 60446 standards
  • LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
  • Adjustable LED brightness allows for measurement in sunlight and lowly lit environments
  • Beeper sounds intermittently when detecting correct phase and continuously for a reversed phase
  • Durable housing with magnets frees hands and allows for easy measurement
  • Low battery indicator
  • Includes: (1) Rotation tester, (1) ISO Certificate with full Data and Uncertainties, (3) Colour-coded cables with alligator clips, (1) 9V Battery, (1) Soft carrying case
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
